Gamma 160
Manual butt welding machine for welding plastic pipes in HDPE and PP up to Ø 160 mm.

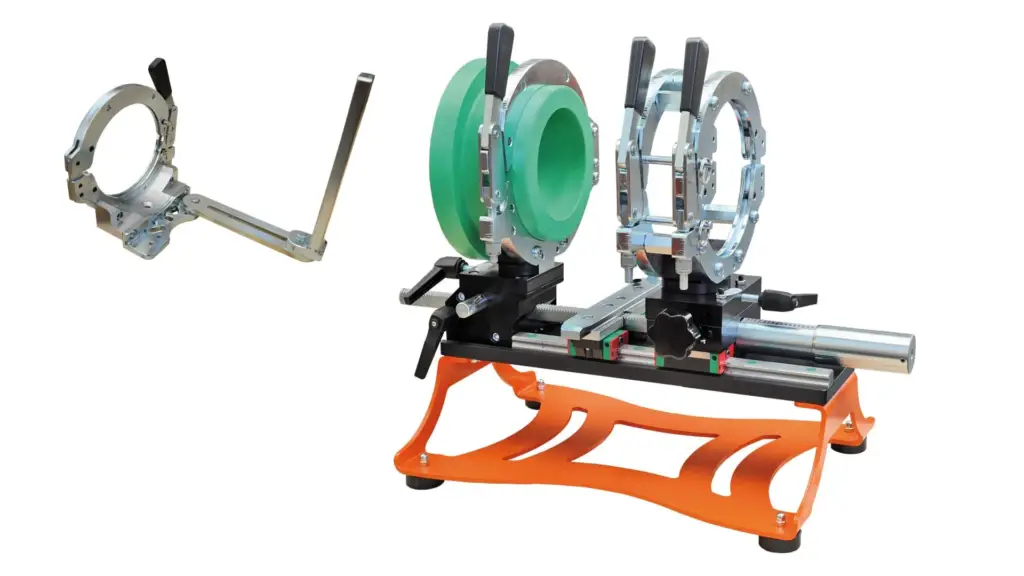

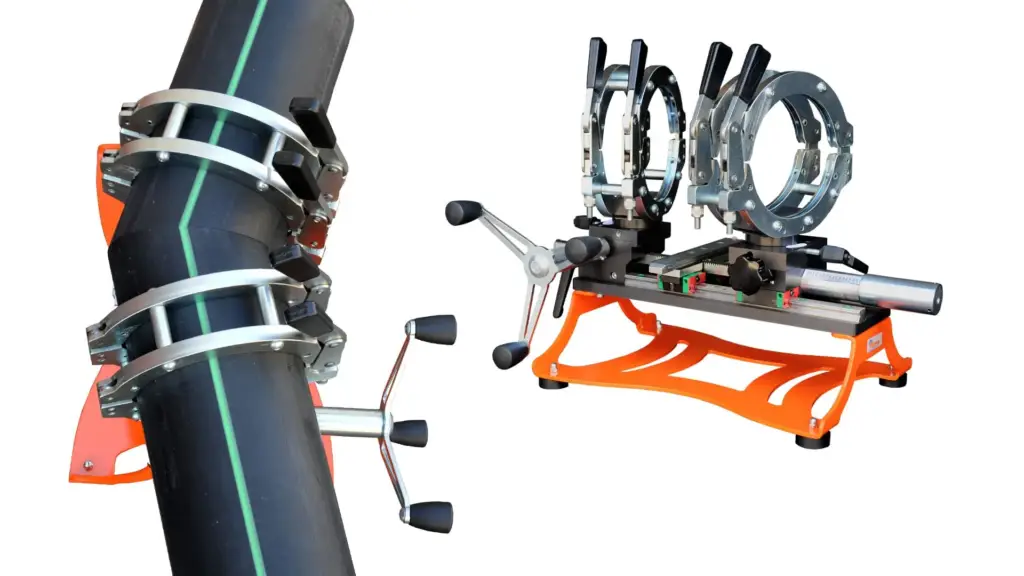

With Gamma 160 you can fabricate fittings by joining pipe segments thanks to steel sliding clamps. Machine can also weld molded fittings like bends, tees, wyes and flange necks up to Ø160 mm; short flange necks can be welded with the help of a tool for flange necks and thin clamp (on request).
The minimalist frame makes Gamma 160 compact, versatile, and easy to transport.
APPLICATION SECTORS
- Industrial
- Mining
- Gas
- Water
- Civil Engineering
- Energy
APPLICATION MATERIALS
- PP
- HDPE
TECHNICAL SPECS
Working range
40 ÷ 160 mm; 1-1/4’ ÷ 4’ IPS
Power supply
110 V Single Phase – 50/60 Hz; 230 V Single Phase – 50/60 Hz
Total absorbed power
1600 W – 110 V; 2020 W – 230 V
Working temperature
180° ÷ 280° C (356° ÷ 536° F)
Outside temperature range
-5 ÷ +40 °C (23÷104°F)
Dimensions Body machine (W x D x H)
610 x 300 x 470 mm (24 x 11.8 x 18,5 in)
Weight Body machine
25 Kg (55.1 lb)
Weight standard composition
85,5 Kg (188.5 Ib)
is_background_thumb
0

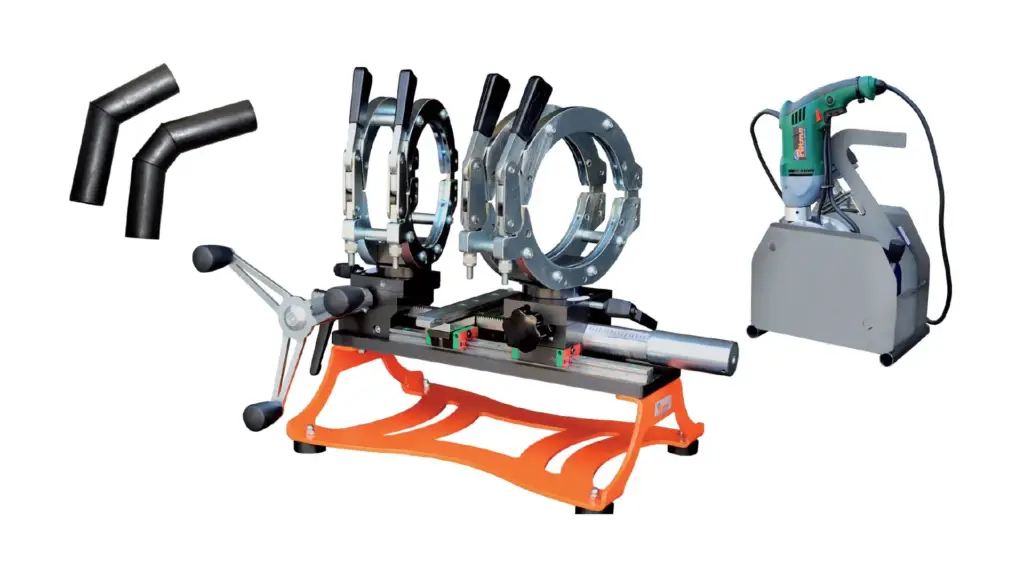

STANDARD COMPOSITION
Body machine
Milling cutter
Heating plate
Support for the milling cutter and heating plate
FEATURES
- Body machine

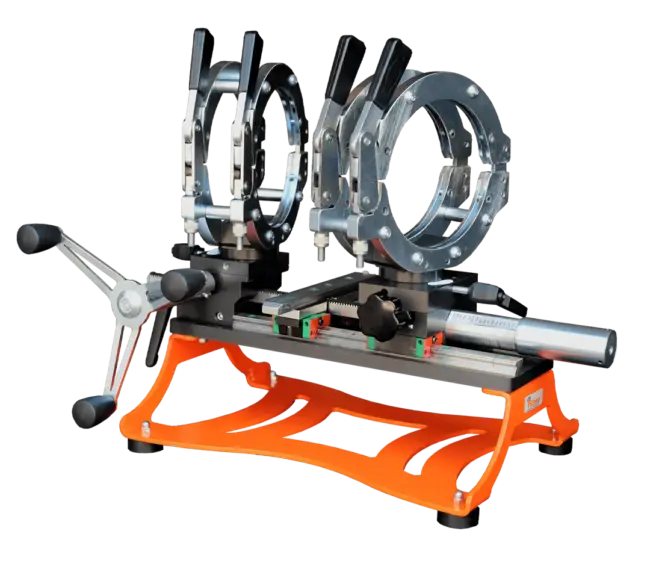

The machine body is mounted on a steel frame that serves as a workbench and is equipped with pressure regulating device of the bench clamps closure. A characteristic of the Gamma 160 is the steel sliding clamps, and standard equipment with inserts from Ø 40 to 140 mm.
- Heating Plate
The heating plate is Teflon-coated and has an electronic precision thermoregulator.
- Electrical Milling Cutter

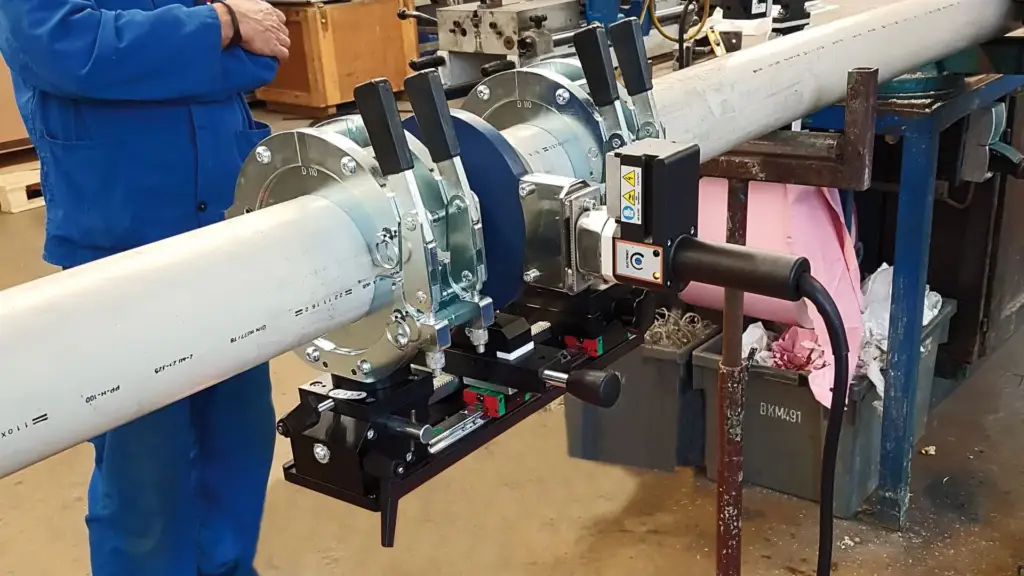

Electric-controlled milling cutter for levelling the ends of the pipe and/or fitting. The safety microswitch prevents accidental starts.
- Support
Convenient support for the Milling cutter and Heating plate.
- Power supply
Available in the 110 V or 230 V versions – Single Phase.
- Power supply
Available 400 V Three Phase version.
