Elektra 1000
Your reliable and high-performance welding control unit for electrofusion for small, medium, and large diameters.

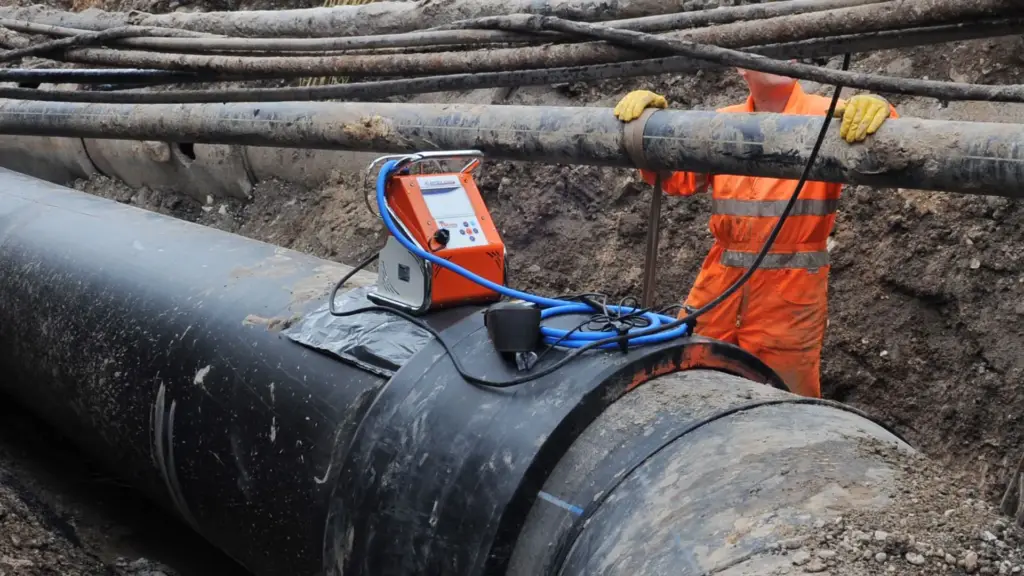

Elektra 1000 is the versatile welder for electrofusion fittings for pressure pipelines in PE, PP, PP-R that welds fittings from 8 ÷ 48 V and up to Ø 1600 mm*. Collaboration with multiple partners worldwide has given Ritmo extensive technical knowledge, not tied to a single manufacturer of electrofusion fittings.
* The working range may vary depending on the brand of fittings. Check with the fitting manufacturer for the required welding power and time.
APPLICATION SECTORS
- Gas
- Water
APPLICATION MATERIALS
- PP-R
- PP
- HDPE
TECHNICAL SPECS
Working range
20 ÷ 1600 ½” IPS – 63” IPS (230 V)
Automatic ambient temperature compensation (through the reading of the EF fitting barcode)
Yes
Continuous welding cycle monitoring
Yes
Barcode scanner (ISO 13950)
Yes
Manual welding parameters input
Yes
Connection
USB-A
Welding report file format
PDF- CSV- BIN
Memory
4000 cycles
Connector
Universal adapter 90° Ø 4.00 – 4,7 mm
Traceability ISO
12176 – 3 12176 – 4
Power supply
230 V – 50/60 Hz
Absorbed power (Power at 60% Duty Cycle)
3500 W
Suggested generator
6,5 ÷ 7 kVA
Max output current
120 A
Welding output voltage
8 ÷ 48 V
Outside temperature range
-20° ÷ 50° C; -4° ÷ 122° F
Dimensions Body machine (W x D x H)
255 x 270 x 385mm 10” x 10.6” x 15.1”
Weight Body machine
20 Kg (44 lb)
Dimensions transport case (W x D x H)
410 x 290 x 485mm 16.1” x 11.4” x 19.1”
STANDARD COMPOSITION
Body machine
Universal connection
Scanner
Manual scraper
Transport case
FEATURES
- Freedom of choice

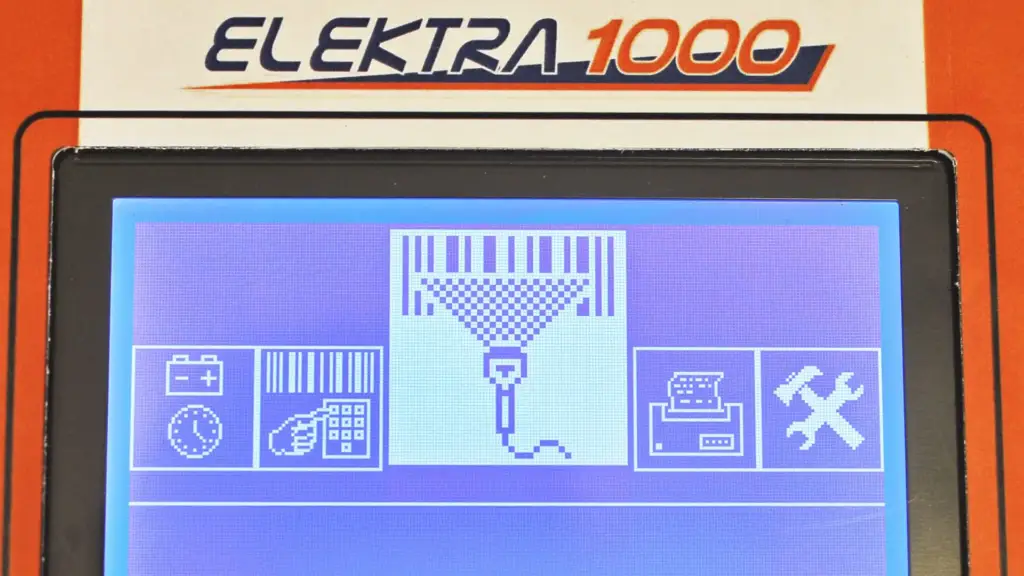

With the powerful scanner of the Elektra 1000, you can read the barcode of the fitting and automatically set the welding parameters – ISO 13950. The laser scanner technology we offer you allows for improved reading in cases of strong contrasts/reflections. It is still possible to enter the welding values manually through the navigation menu: welding voltage/time, or a numeric code associated with the barcode.
- Traceability
Maximum traceability with Elektra 500 for welding in compliance with ISO 12176-3 Operator Traceability and ISO 12176-4 Fitting/Pipe Traceability standards. It is possible to expand the traceability functions by identifying the jobsite through a GPS Kit (on request). The geolocation data is included in the welding report.
- Power supply
Available in 230 V version – Single Phase.
- What it looks like

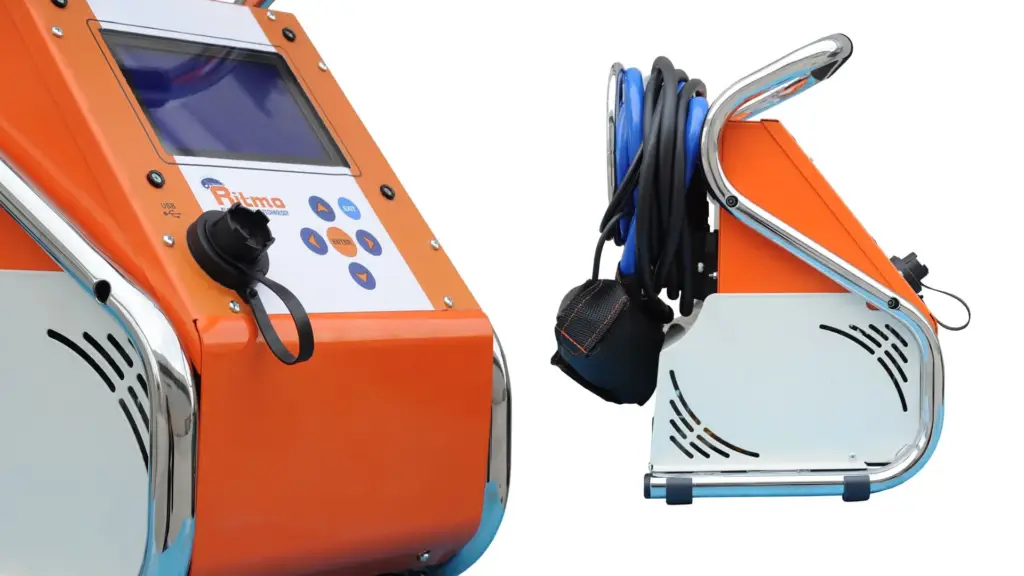

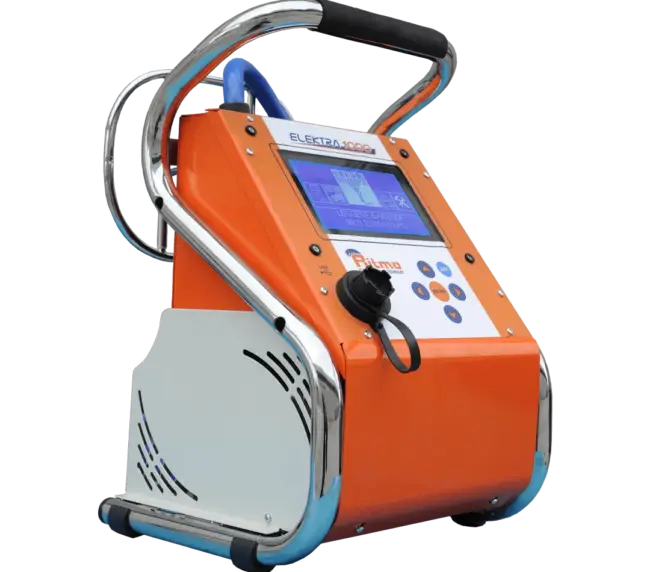

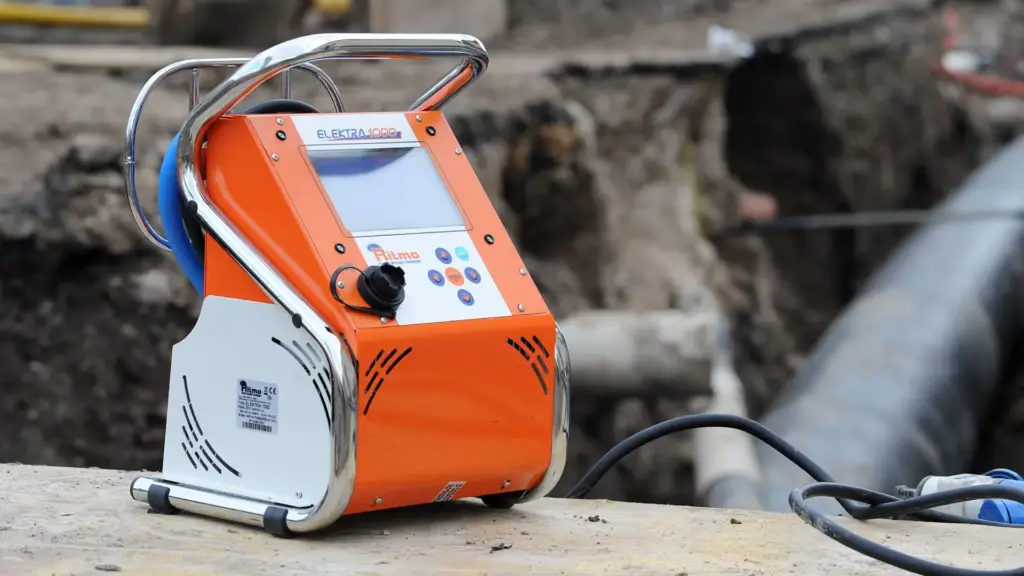

The machine body is wrapped in a tubular steel frame that creates a protective structure and gives the welding machines a design and functionality, also serving as a carrying handle and to house the cables. The graphic display stands out for its size and facilitates reading during the setting and working phases. The control panel is intuitive and makes the setup of the welding machine quick.
- Customer-friendly
Select from the navigation menu one of the 19 pre-loaded languages to make welding with Elektra 1000 even easier and more intuitive.
- Traceability
Maximum traceability with Elektra 1000 for welding in compliance with ISO 12176-3 Operator Traceability and ISO 12176-4 Fitting/Pipe Traceability standards. The traceability functions can be expanded by identifying the work location using a GPS kit (optional). The geolocation data is included in the welding report.
- Quality
Leave nothing to chance, certify your work with a welding report in PDF format. Rely on the powerful internal memory capable of storing 4,000 welds. All data is always easily downloadable to an external memory through the USB port, directly in PDF, CSV, or BIN format. In the case of the BIN format, the Ritmo Transfer software is required (on request).
- Unique style
Since 2008, our Elektra Line welding machines have been equipped with universal connectors, which means that no adapters are required for welding. The Elektra 1000 model has 90-degree universal connectors with a diameter of 4.0 – 4.7 mm.
