Delta 500
Professional welding machine designed to last for years.

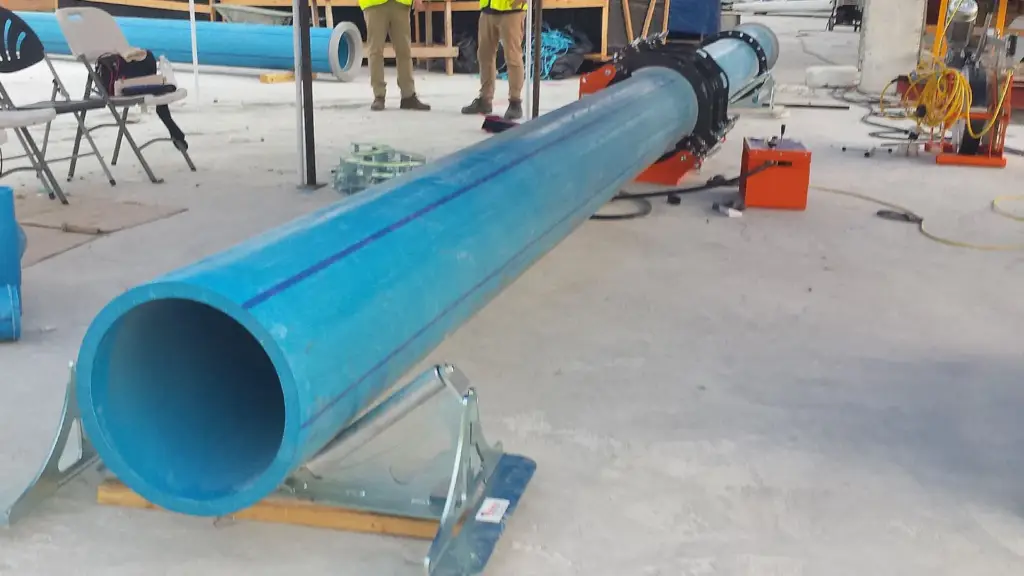

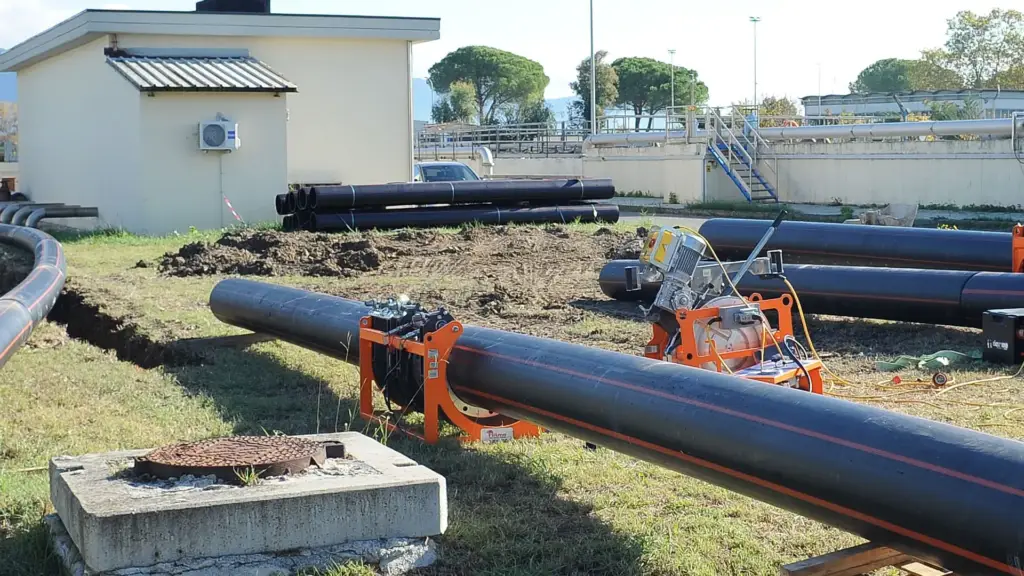

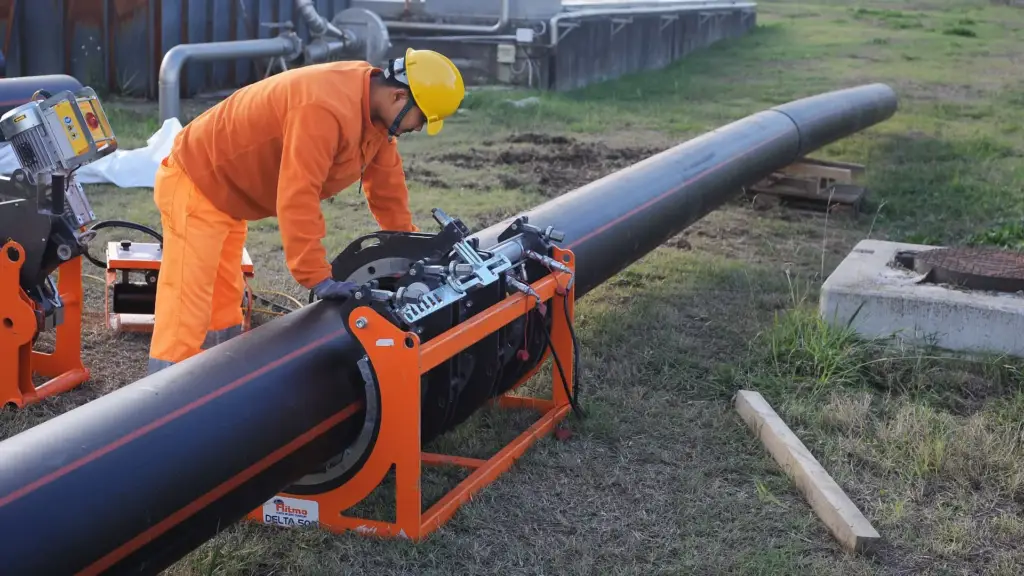

With the Delta 500, you can safely weld HDPE, PP, PVDF, and other thermoplastic materials for pressure pipelines (water, gas, and other) up to Ø 500 mm.
Built in compliance with UNI 10565 and ISO 12176-1 standards, and to Ritmo’s high standards, this welding machine ensures high-level performance.
APPLICATION SECTORS
- Energy
- Industrial
- Mining
- Gas
- Water
- Civil Engineering
APPLICATION MATERIALS
- PP-R
- PP
- HDPE
- PB
- PVDF
TECHNICAL SPECS
Working range
200 ÷ 500 mm; 8” IPS ÷ 18” IPS; 8’’ DIPS ÷ 18” DIPS
Power supply
230 V Single Phase 50/60 Hz; 400 V 3-Phase 50/60 Hz
Total absorbed power
7950 W (230 V); 7200 W (400 V)
Suggested power generator
12 kVA
Working temperature
180° ÷ 280° C (356° ÷ 536° F)
Outside temperature range
-10° ÷ 40° C (14° ÷ 104° F)
Time to reach welding temperature
< 20’
Dimensions Body machine (W x D x H)
1265 x 790 x 780 mm (50 x 31 x 31 in)
Dimensions gearcase (W x D x H)
615 mm x 298 mm x 474 mm (24.21 x 11.73 x 18.66 in)
Weight Body machine
230 Kg (507 Ib)
Weight standard composition
418 Kg (921.53 Ib)
is_background_thumb
0

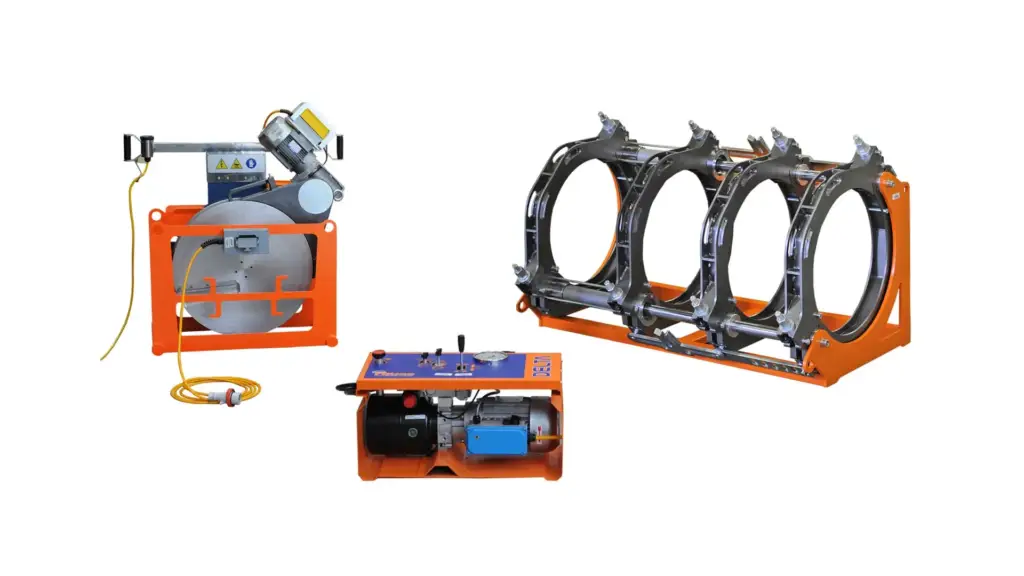

STANDARD COMPOSITION
Body machine
Gearcase
Milling cutter
Heating plate
Support for the milling cutter and heating plate
Thermoregulator
FEATURES
- Steel clamps

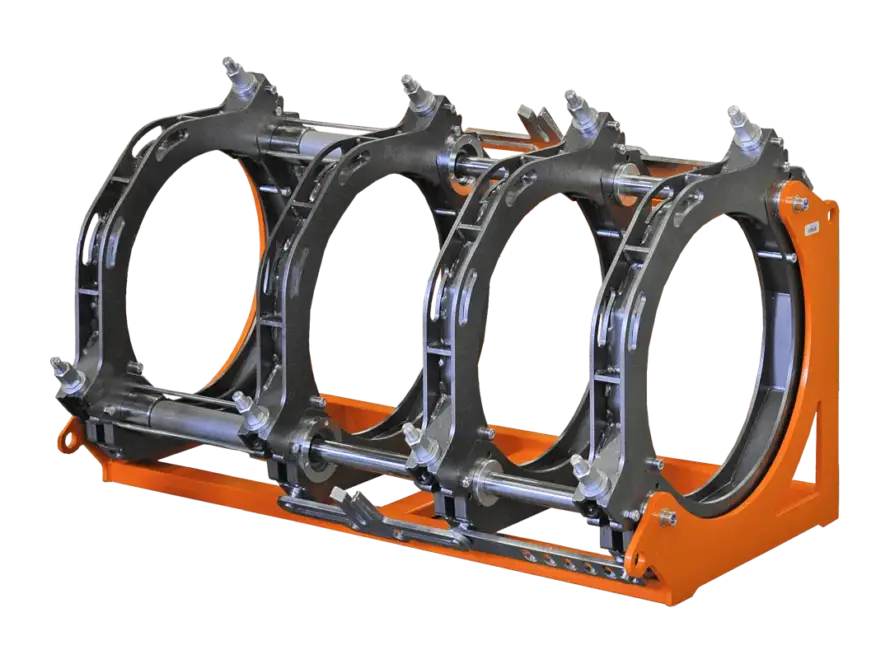

The machine body is robust and composed of a welded steel frame, four steel clamps, and two hydraulic cylinders with drip-free quick couplings.
- Heating Plate
The heating plate is Teflon-coated. Adding value is the presence of the high-precision electronic thermoregulator: Digital Dragon. An independent verification thermometer is provided for temperature reading.
- Electrical Milling Cutter
Removable Electrical Milling Cutter with fast removing system from the operator side, allowing easy and effortless removal. It is equipped with blades, on/off switch, safety microswitch and motor overload protection.
- Electro-hydraulic Gearcase
Contained in a protective box our electro-hydraulic gearcase will be precise and powerful, and able to always provide you with the best welding management effectiveness (also in “Dual Pressure” mode).
- Drag bar
Configuring the Drag bar, Delta 500 easily welds fittings and flanges necks without any additional equipment.
- Detach device

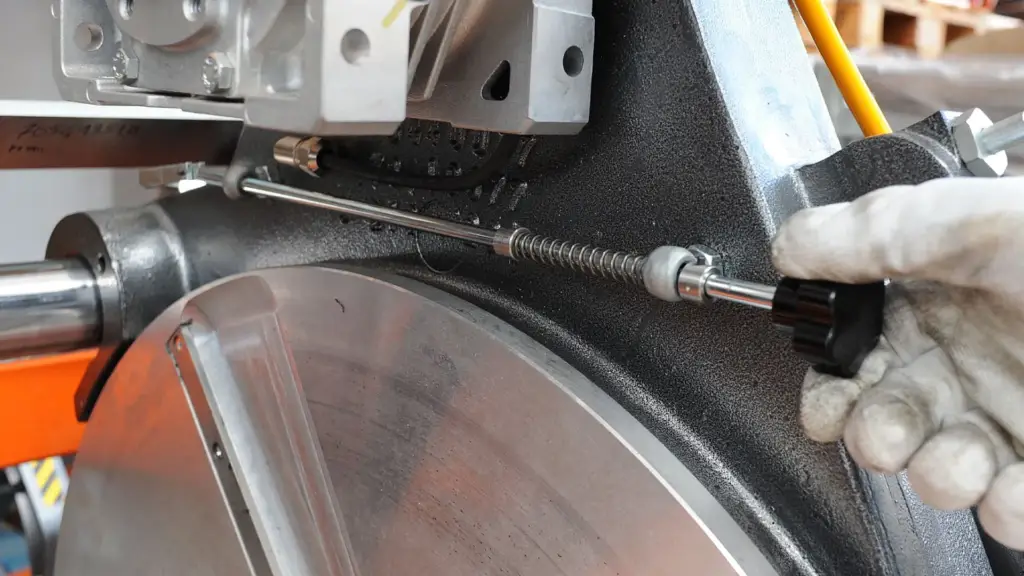

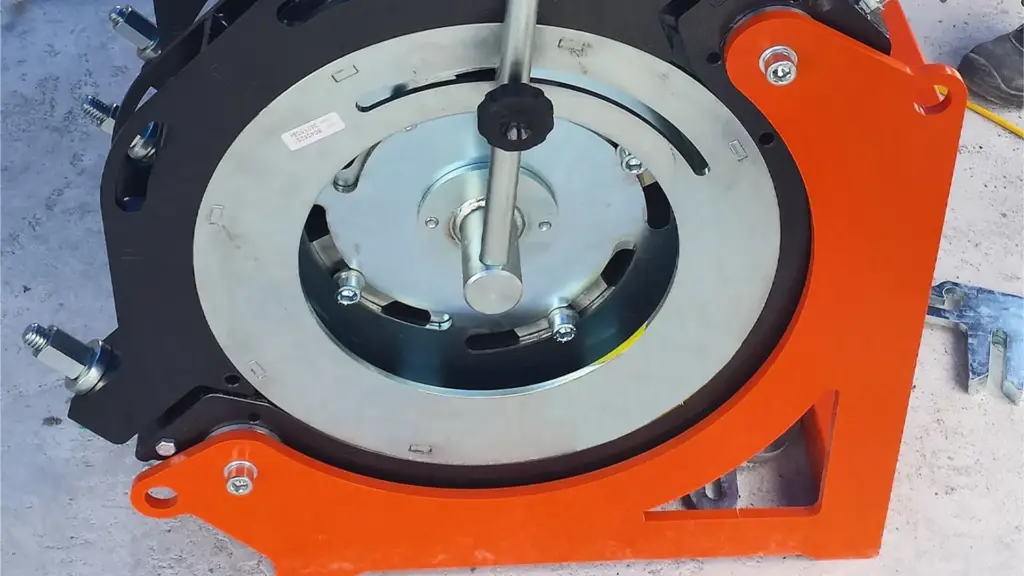

The Detach device functions as the support for the heating plate, and with its mechanical action it triggers the detachment of the heating plate during the exchange phase, making your work easier.
- Support

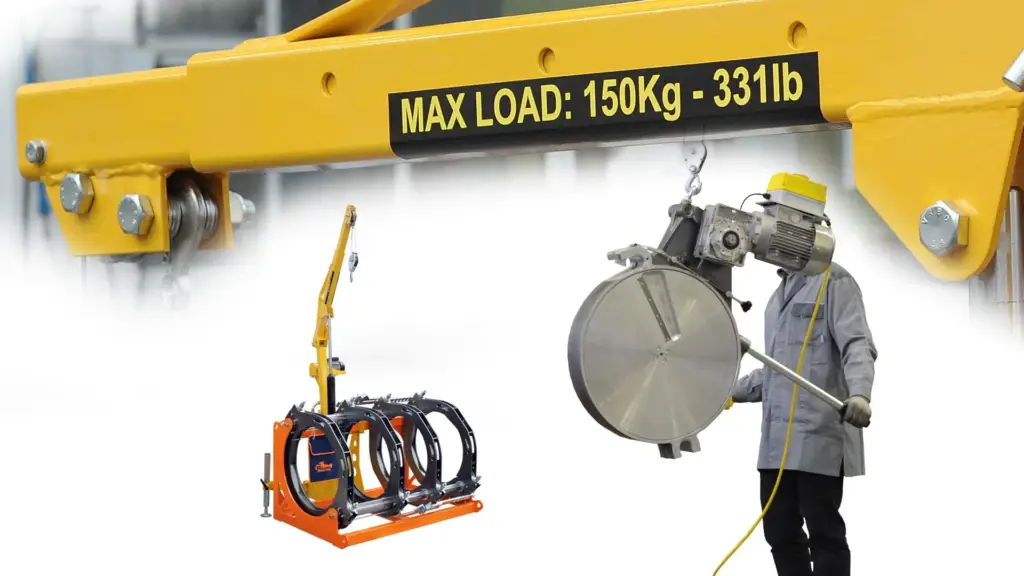

Convenient support for the Milling cutter and Heating plate. Designed to accommodate the pre-insulated bag (on request).
- Power supply
Available in 230 V -Single Phase or 400 V Three Phase versions.
