Basic 200
Professional welding machine designed to last for years.

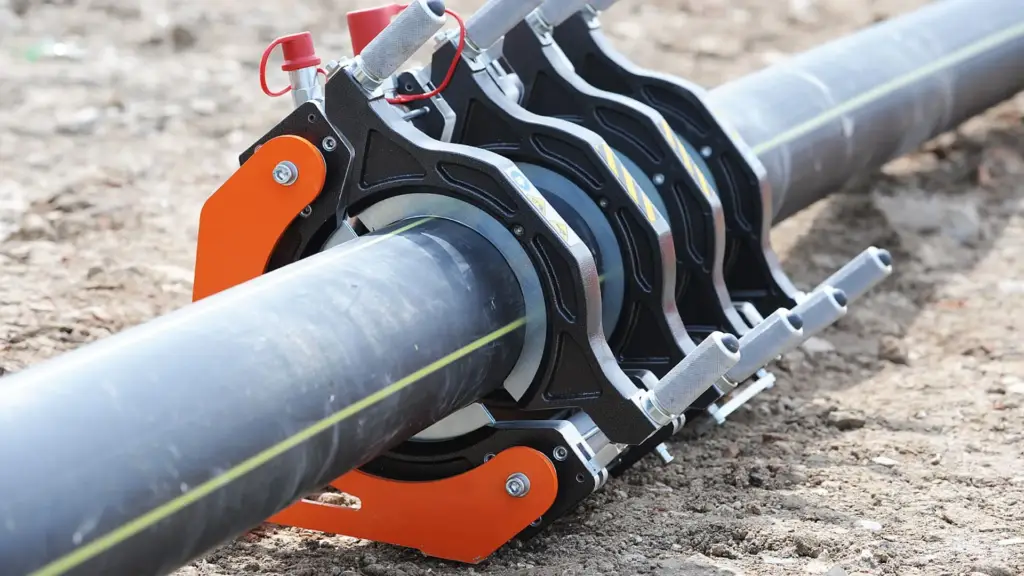

With the Basic 200, you can safely weld HDPE, PP, PVDF, and other thermoplastic materials for pressure pipelines (water, gas, and other) up to Ø 200 mm.
Built in compliance with UNI 10565 and ISO 12176-1 standards, and to Ritmo’s high standards, this welding machine ensures high-level performance.
APPLICATION SECTORS
- Industrial
- Mining
- Gas
- Water
- Civil Engineering
- Energy
APPLICATION MATERIALS
- PB
- PVDF
- PP-R
- PP
- HDPE
TECHNICAL SPECS
Working range
63 ÷ 200 mm; 2” IPS ÷ 6” IPS; 3’’ DIPS ÷ 6” DIPS
Power supply
110 V Single Phase 50/60 Hz; 230 V Single Phase 50/60 Hz
Total absorbed power
3220 W
Suggested power generator
5,5 ÷ 6 kVA
Working temperature
180° ÷ 280° C (356° ÷ 536° F)
Outside temperature range
-10° ÷ 40° C (14° ÷ 104° F)
Time to reach welding temperature
< 20’
Dimensions Body machine (W x D x H)
685 x 460x 420 mm (27 x 18.2 x 16.5 in)
Dimensions gearcase (W x D x H)
470 x 250 x 370 mm (18.5 x 9.8 x 14.5 in)
Weight Body machine
39 Kg (86 lb)
Weight standard composition
90 Kg (198 lb)
is_background_thumb
0

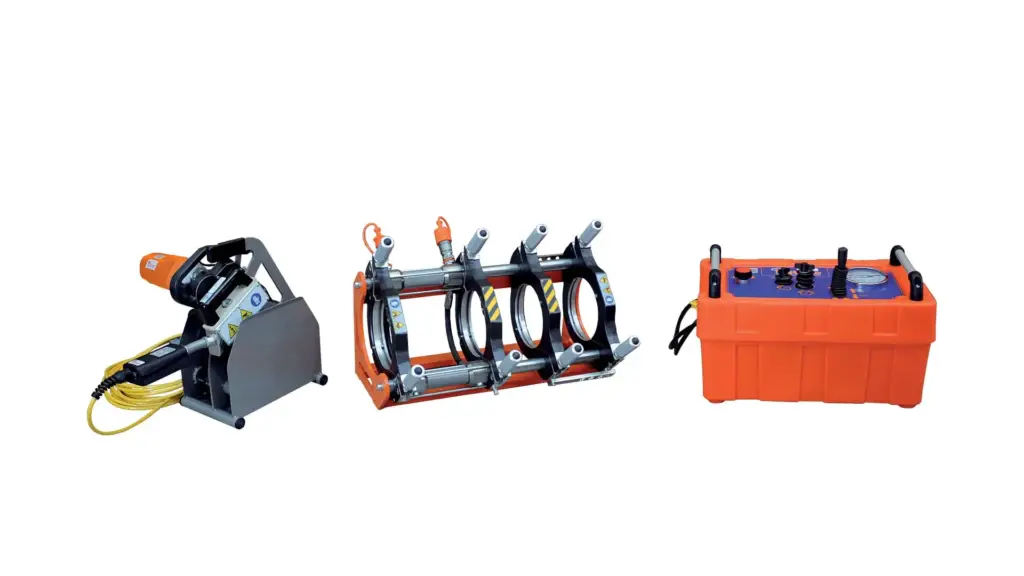

STANDARD COMPOSITION
Body machine
Gearcase
Milling cutter
Heating plate
Digital Dragon
Support for the milling cutter and heating plate
FEATURES
- Clamps and cylinders

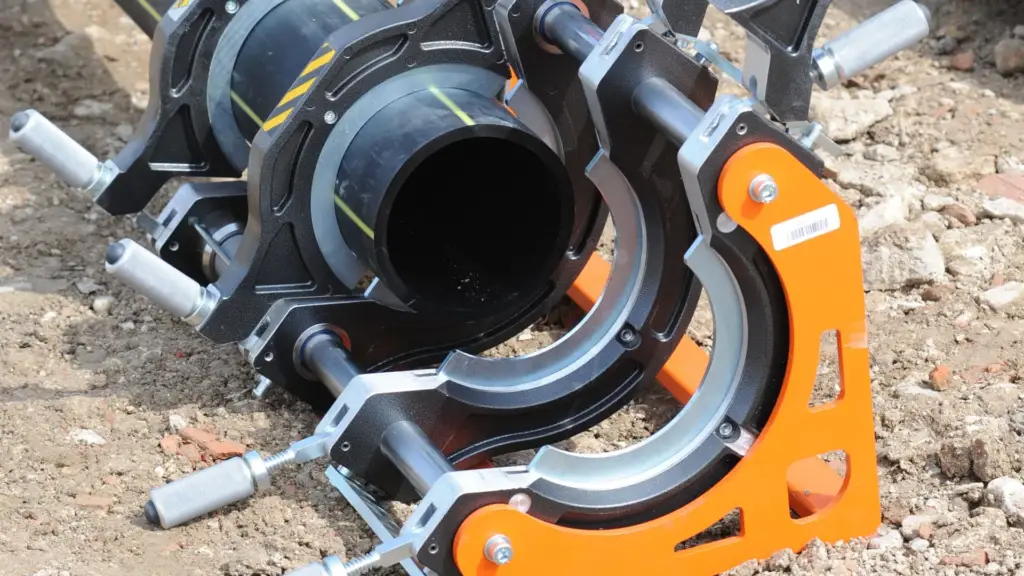

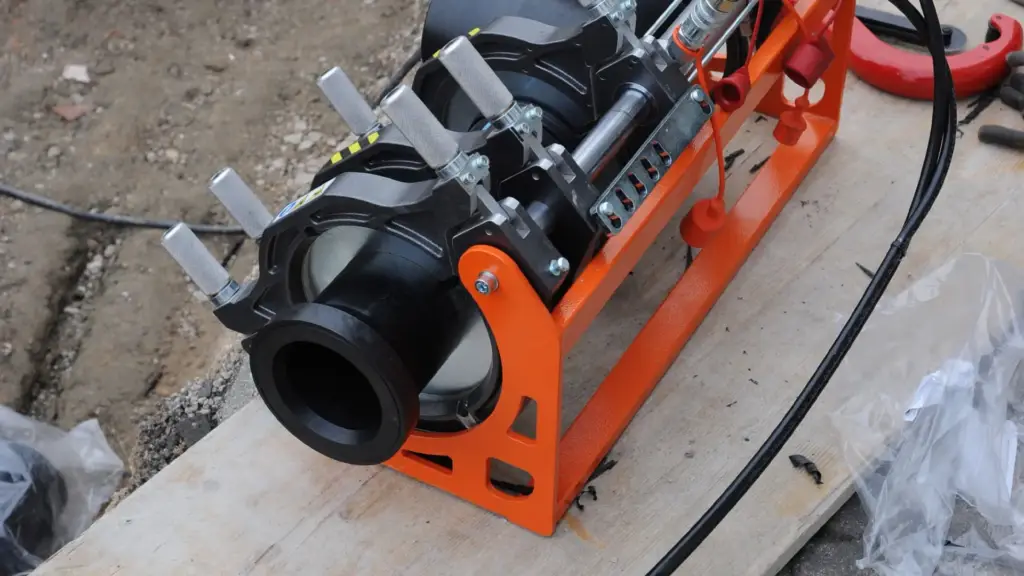

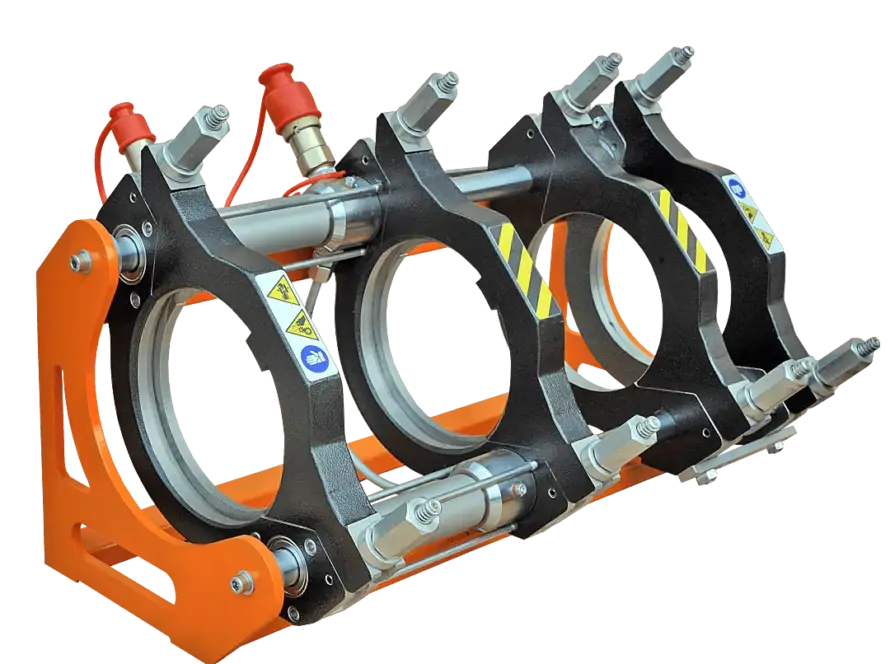

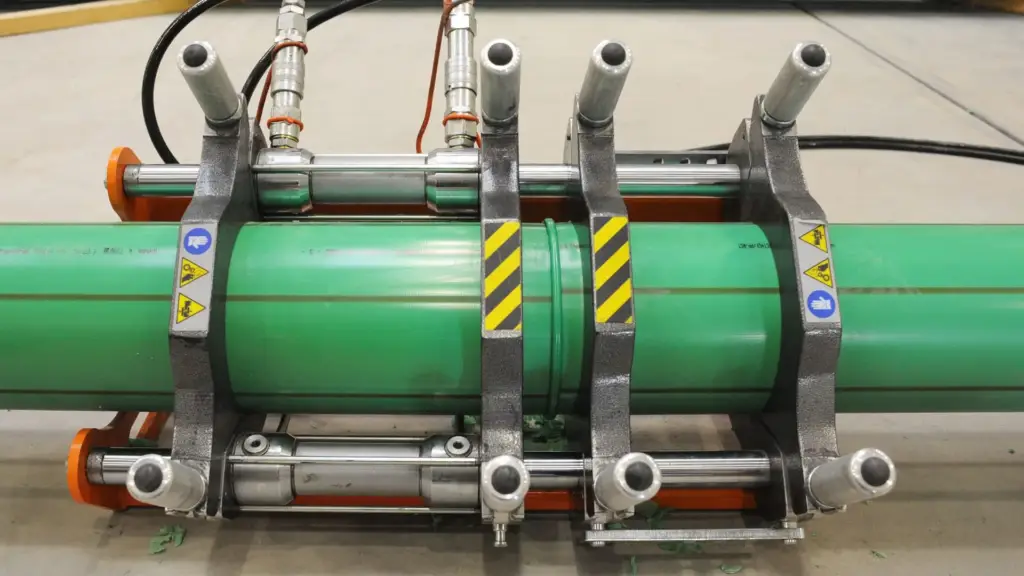

The machine body is robust and composed of a welded steel frame, four aluminum clamps, and two hydraulic cylinders with drip-free quick couplings.
- Heating Plate
The heating plate is Teflon-coated. Adding value is the presence of the high-precision electronic thermoregulator: Digital Dragon. An independent verification thermometer is provided for temperature reading.
- Electrical Milling Cutter
Electrical Milling Cutter equipped with long-lasting blades, attachment system, on/off switch, safety microswitch and motor overload protection. PP-R pipe blades available on request.
- Electro-hydraulic Gearcase
Contained in a protective box our electro-hydraulic gearcase will be precise and powerful, and able to always provide you with the best welding management effectiveness (also in “Dual Pressure” mode).
- Drag bar

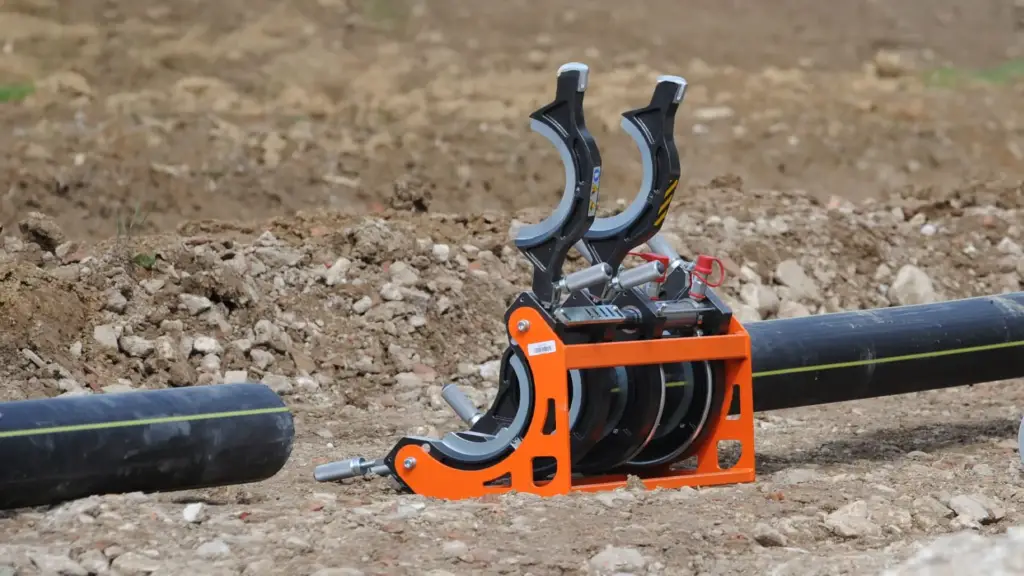

Configuring the Drag bar, Basic 200 easily welds fittings and flanges necks without any additional equipment.
- Support
Convenient support for the Milling cutter and Heating plate. Designed to accommodate the pre-insulated bag (on request).
- Power supply
Available in the 110 V or 230 V versions – Single Phase.
