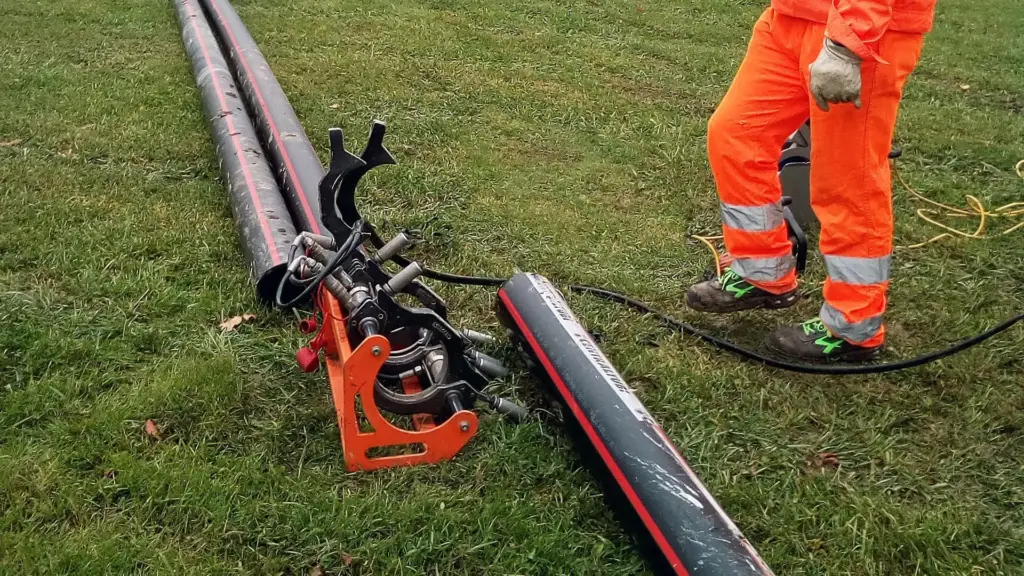

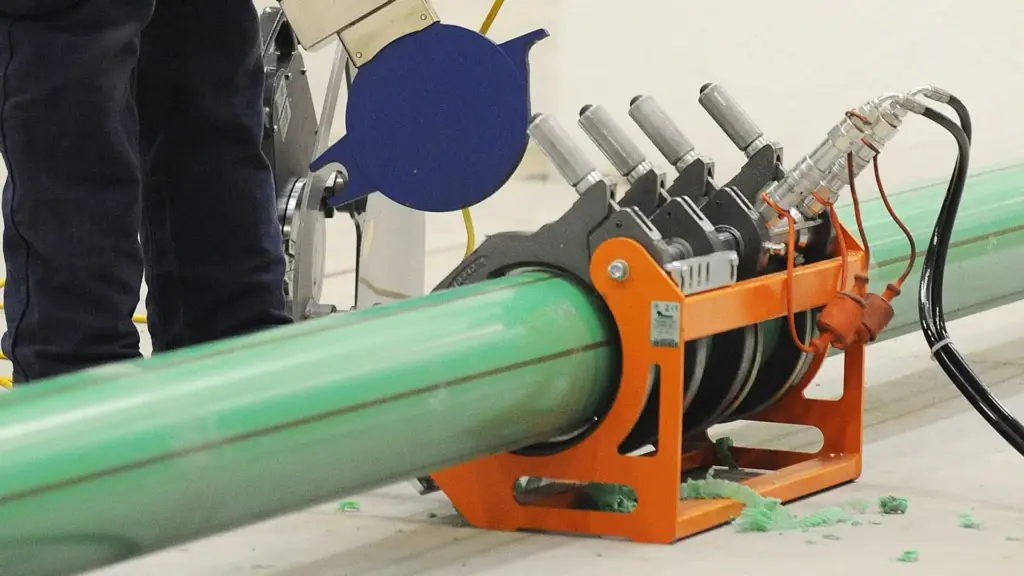

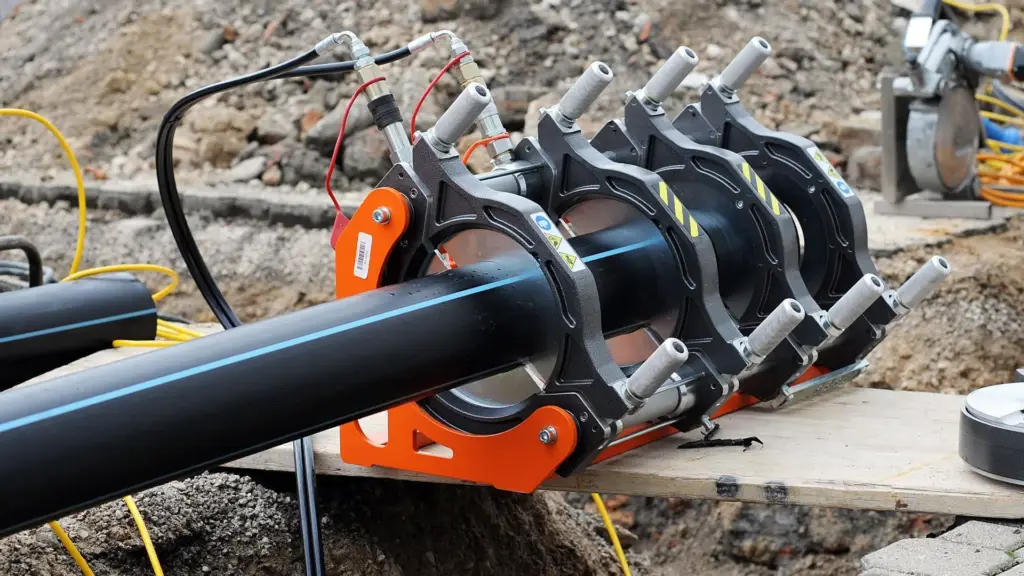

Basic 160
Professional welding machine designed to last for years.

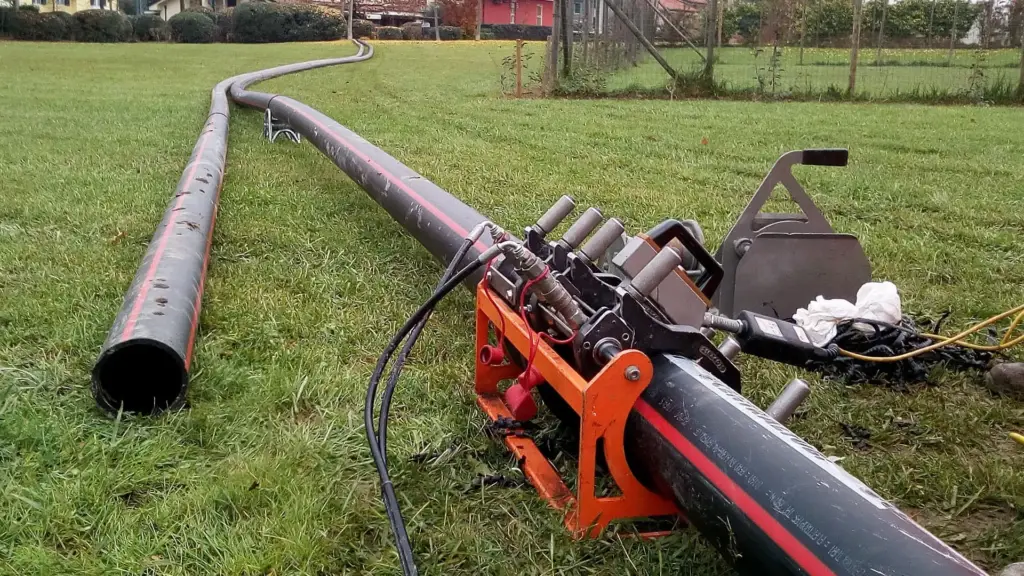

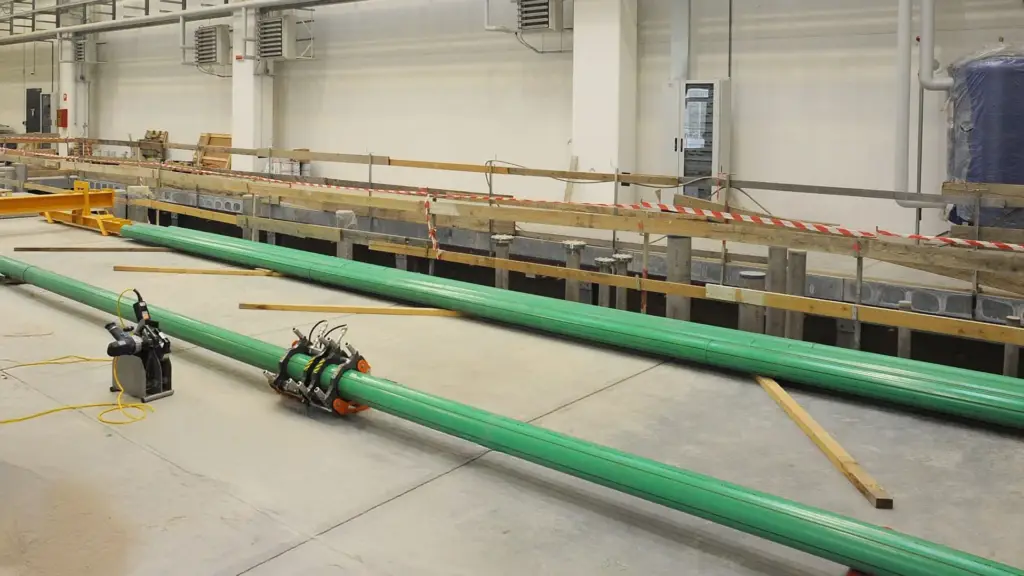

With the Basic 160, you can safely weld HDPE, PP, PVDF, and other thermoplastic materials for pressure pipelines (water, gas, and other) up to Ø 160 mm.
Built in compliance with UNI 10565 and ISO 12176-1 standards, and to Ritmo’s high standards, this welding machine ensures high-level performance.
APPLICATION SECTORS
- Civil Engineering
- Energy
- Industrial
- Mining
- Gas
- Water
APPLICATION MATERIALS
- PB
- PVDF
- PP-R
- PP
- HDPE
TECHNICAL SPECS
Working range
40 ÷ 160 mm; 1” IPS ÷ 5” IPS; 3” DIPS ÷ 4” DIPS
Power supply
110 V Single Phase 50/60 Hz; 230 V Single Phase 50/60 Hz
Total absorbed power
Suggested power generator
Working temperature
Outside temperature range
Time to reach welding temperature
Dimensions Body machine (W x D x H)
606 x 365 x 375 mm (23.9 x 14.4 x 14.8 in)
Dimensions gearcase (W x D x H)
470 x 250 x 370 mm (18.5 x 9.8 x 14.5 in)
Weight Body machine
31 Kg (68 lb)
Weight standard composition
is_background_thumb
0

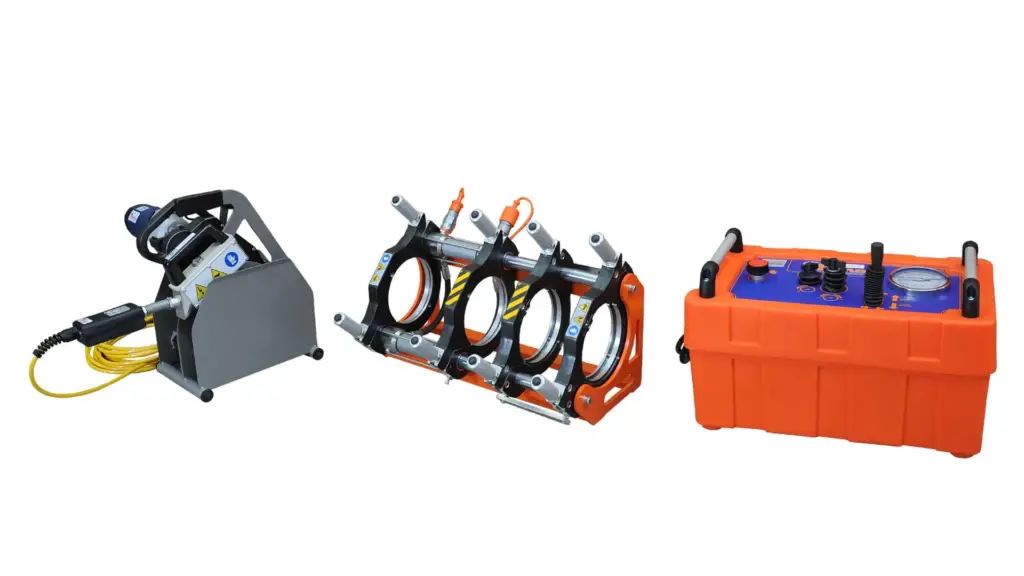

STANDARD COMPOSITION

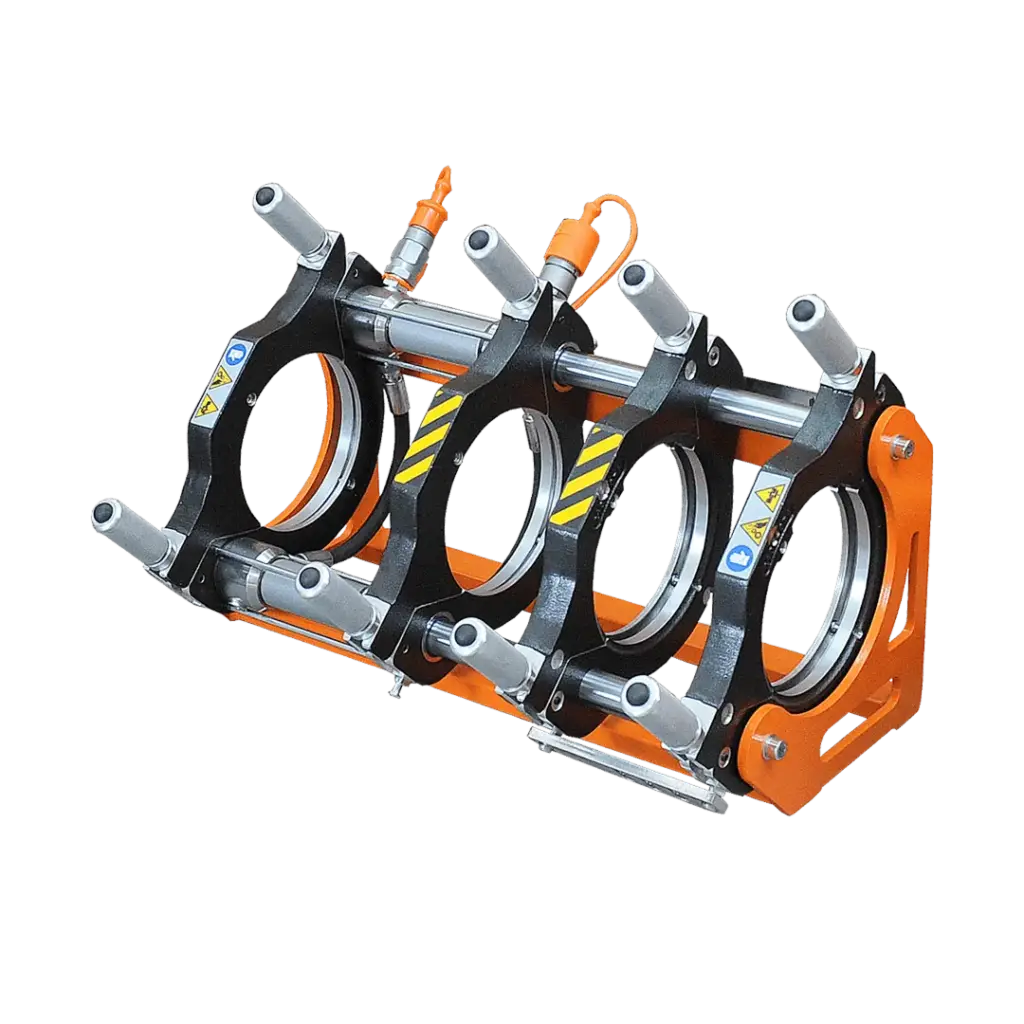

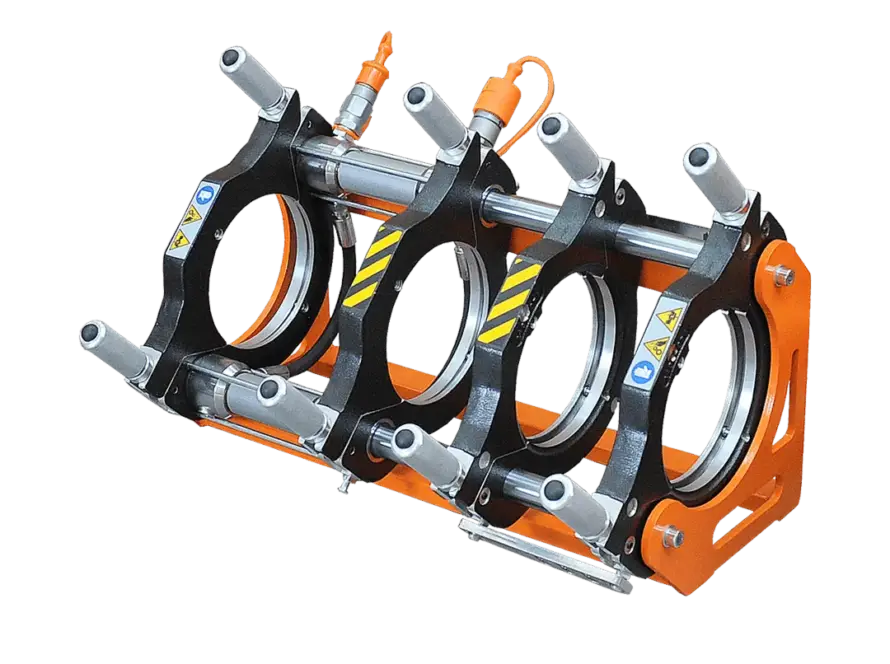

Body machine
Gearcase
Milling cutter
Heating plate
Digital Dragon
Support for the milling cutter and heating plate
FEATURES

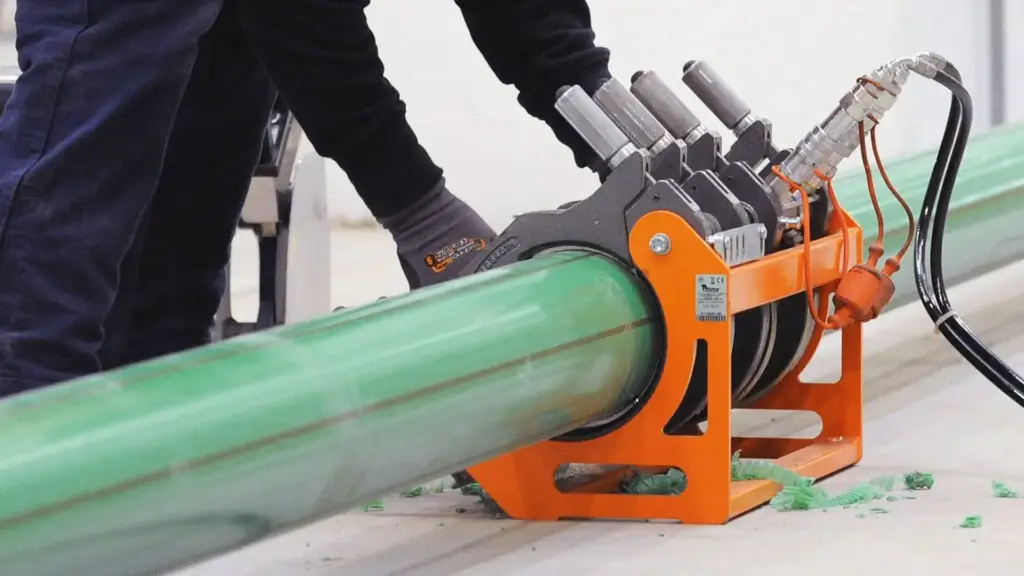

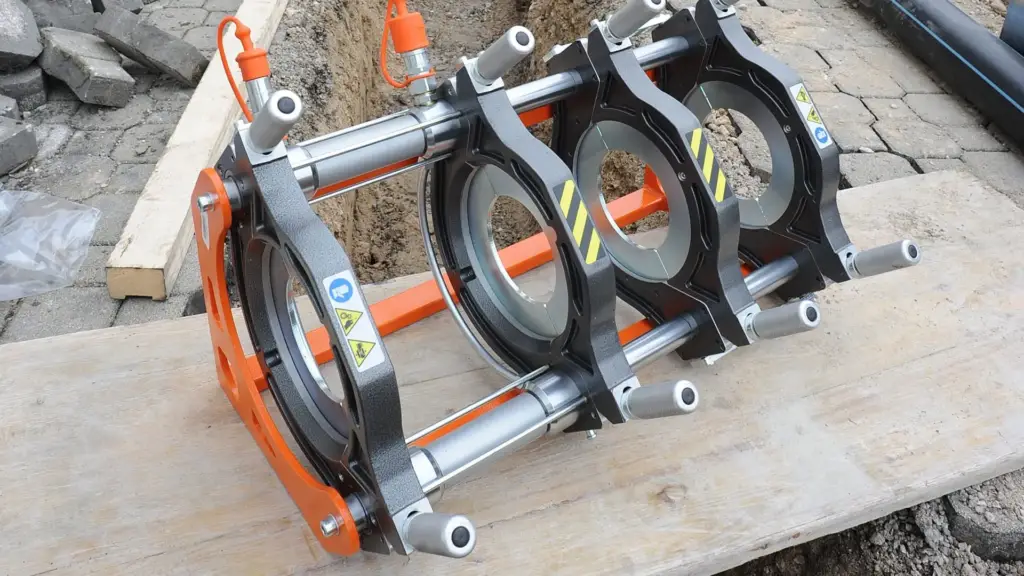

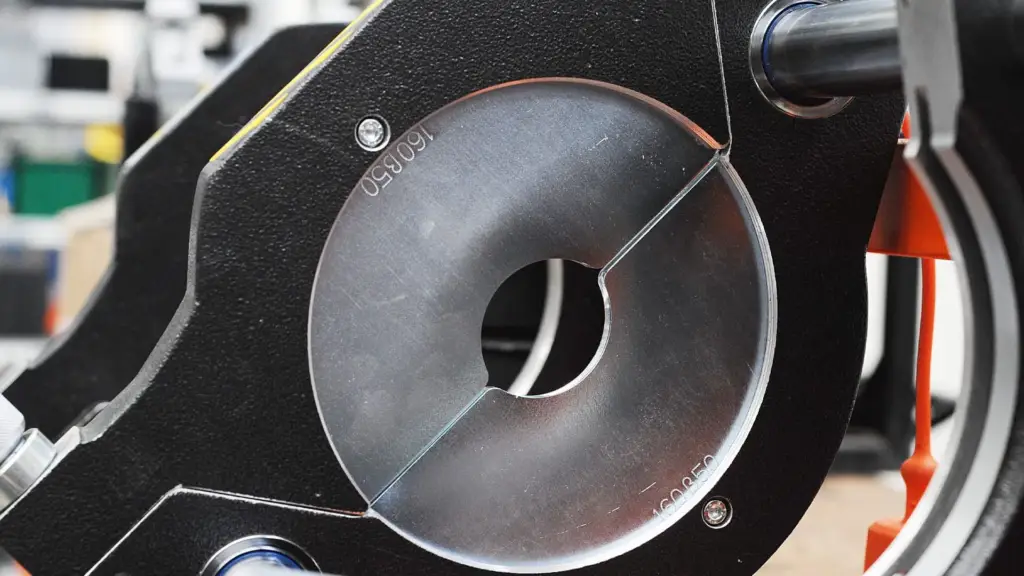

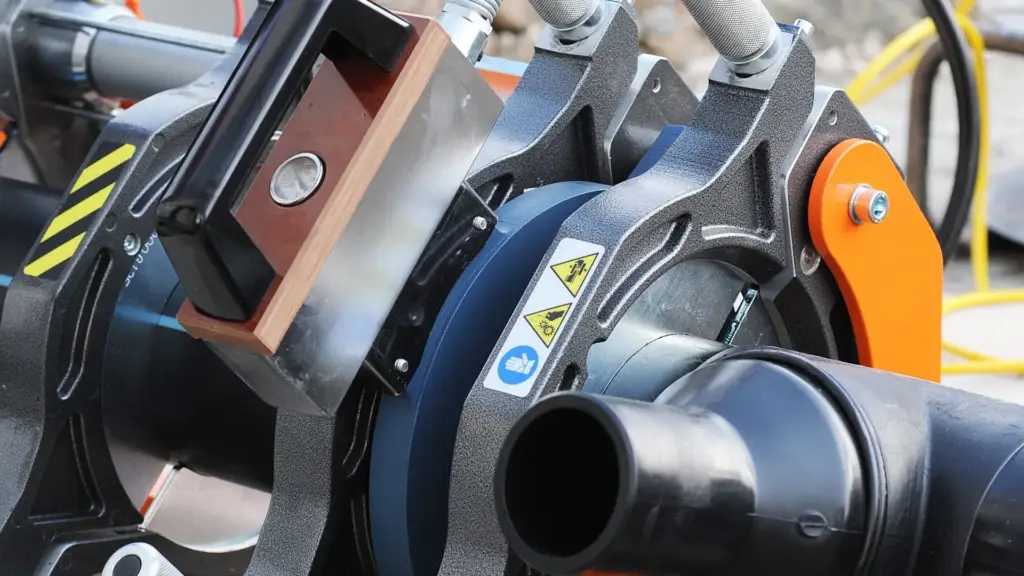

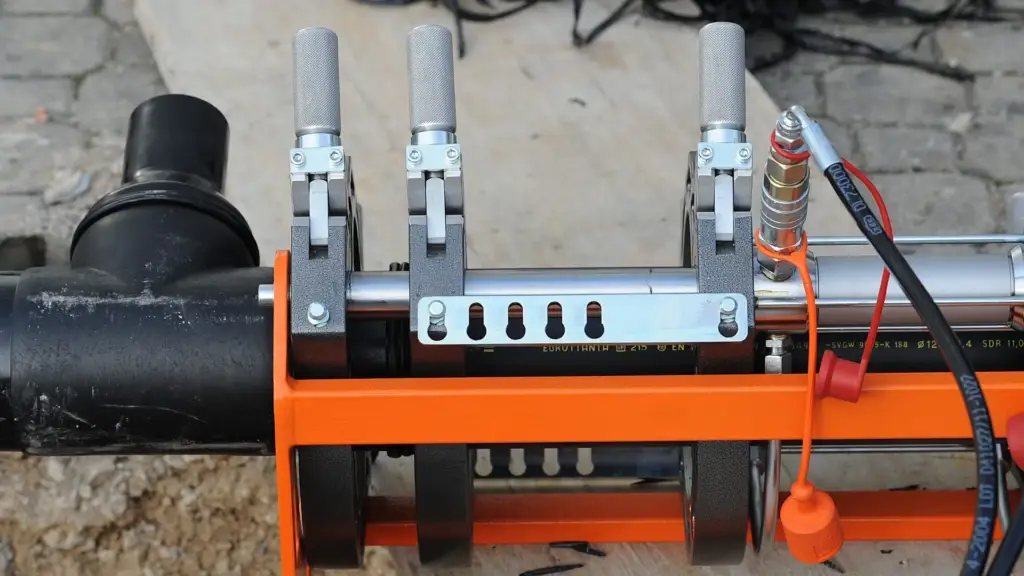

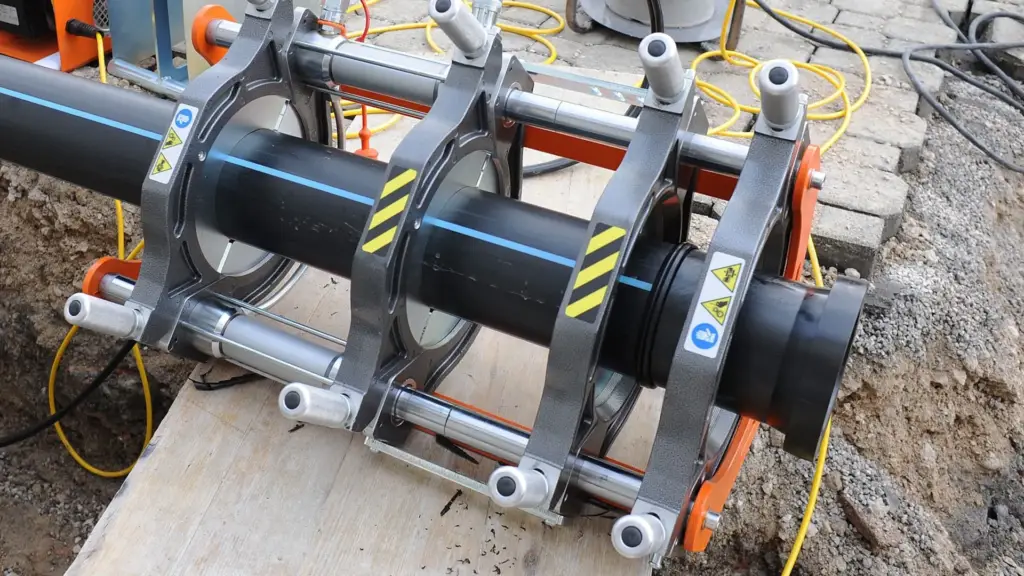

- Clamps and cylinders
- Heating Plate
The heating plate is Teflon-coated. Adding value is the presence of the high-precision electronic thermoregulator: Digital Dragon. An independent verification thermometer is provided for temperature reading.
- Electrical Milling Cutter
- Electro-hydraulic Gearcase
- Drag bar
- Support
Convenient support for the Milling cutter and Heating plate. Designed to accommodate the pre-insulated bag (on request).
- Power supply
Available in the 110 V or 230 V versions – Single Phase.
- Power supply
